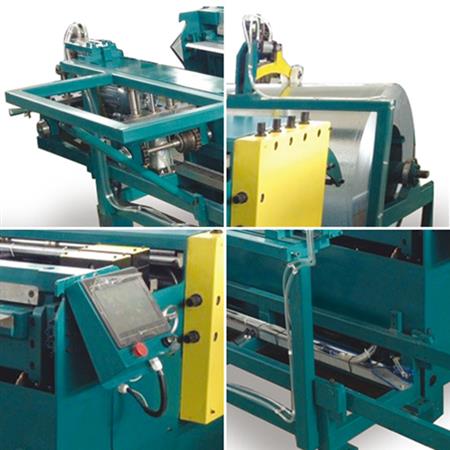

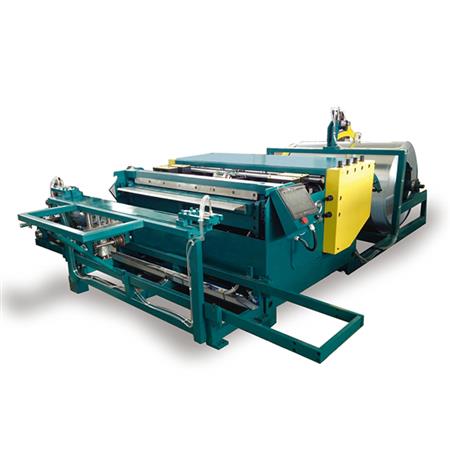

Duct Manufacture Super Line II Products Information
Super line II consists of cradle style decoiler, straightening, beading, punching, notching, hydraulic shearing and pittsburgh lock forming type 2 ( forms pittsburgh lock, right angle lock and cutting simultaneously ).
This automatic duct line processes maximum coil width 1300mm or 1600mm galvanized steel for 18 to 30 gauge material into blank for TDF integrarted flange duct, TTF/ LT mate flange duct or angle iron flange duct.
Duct Manufacture Super Line II Configuration
1.Modular design allows addding a section at a time, can be upgraded to Auto Line V, Auto Line VI, Auto Line VII or Auto Line VIII.
2.Motor driven decoiling, selectable coils stand by, maximum capacity of 5-ton per station ( optional :up to 10 ton per station )
3.Optimizes floor space by inline position of machines, guarantees high efficiency.
4.Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen.
Duct Manufacture Super Line II Capabilities
coil - straightening - beading - punching - square - notching - shearing - pittsburgh lock forming type 2
