  • Model number : RF-08S button snap lock former

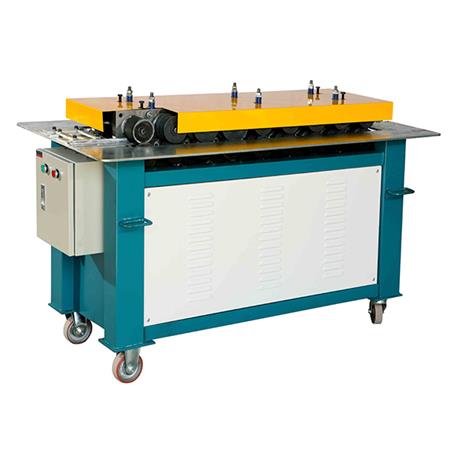

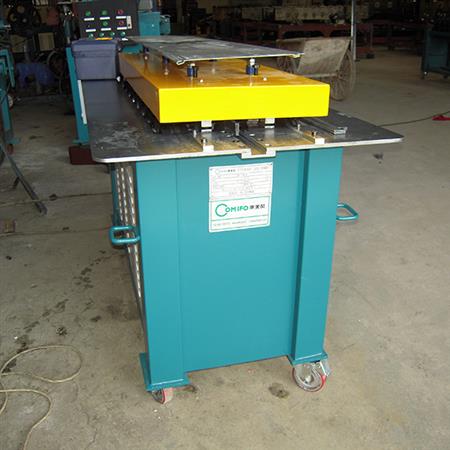

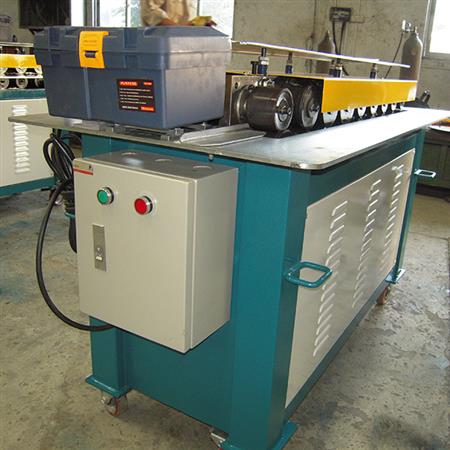

RF-08S Button Snap Lock Former

  • Model No.:RF-08S
  • Description:Female Button Lock,Male Button Lock
  • Thickness Range Used:0.4-0.8mm(22-30ga)
  • Material:33mm,5.5mm
  • Size:11mm,5.5mm
  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: GUANGZHOU PORT,SHENZHEN PORT
  • Payment Terms: T/T,L/C

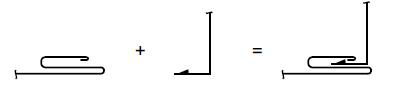

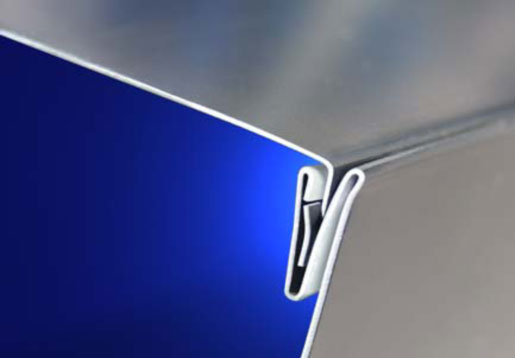

RF-08S is the most popular lock former of HVAC workshop. The Button Lock roll former comes with "male" tooling on one side and "female" on the opposing side. A fast, effective way. Rollforms Male & Female Button Lock in one machine,with the thickness range from 0.4mm to 0.8mm.

>Arc welded steel stand, heavy top plate

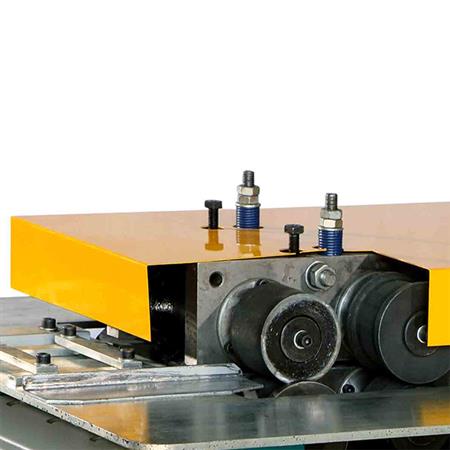

>Roller material: 40Cr
>Roller shaft material: Thermal refined 45#
>Transmission: V-belt
>Speed: 26 FPM(9m/min)
