Products

Expert Of HVAC Auto Duct Line

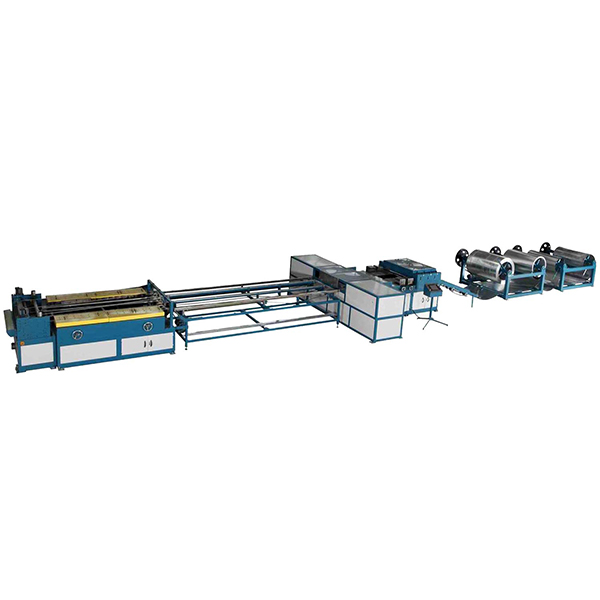

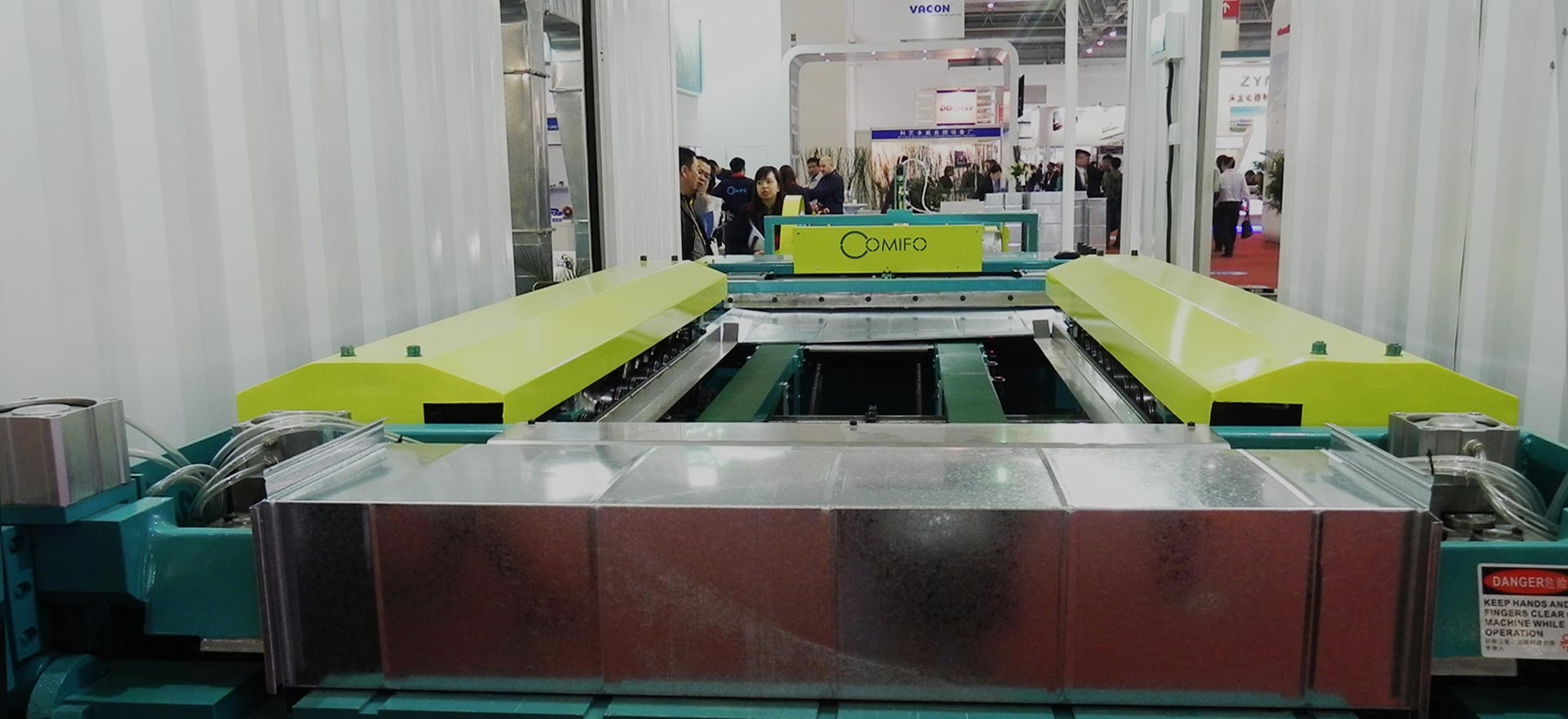

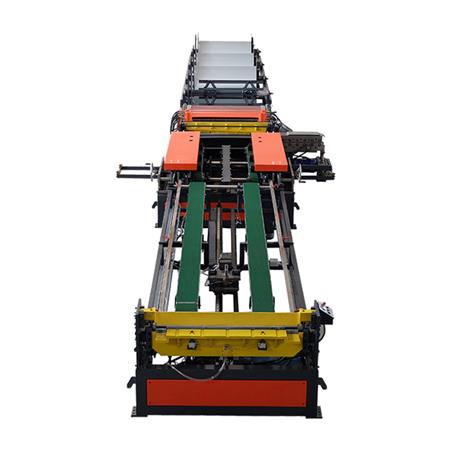

Duct Manufacture Auto Line Pro

It can be put in a 20GP container,which is small enough to fit small workshop or be taken to the construction site. Only 1 operator is required, daily production can reach 2000㎡.

Detail

Duct Manufacture Auto Line Pro

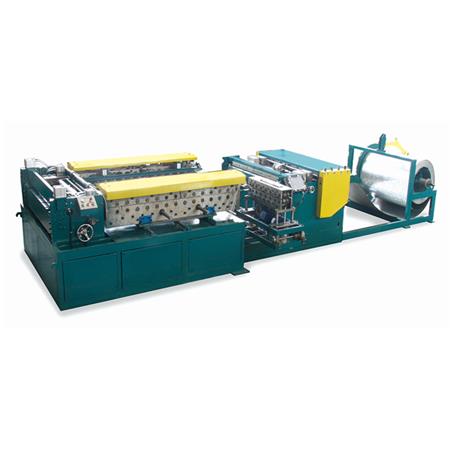

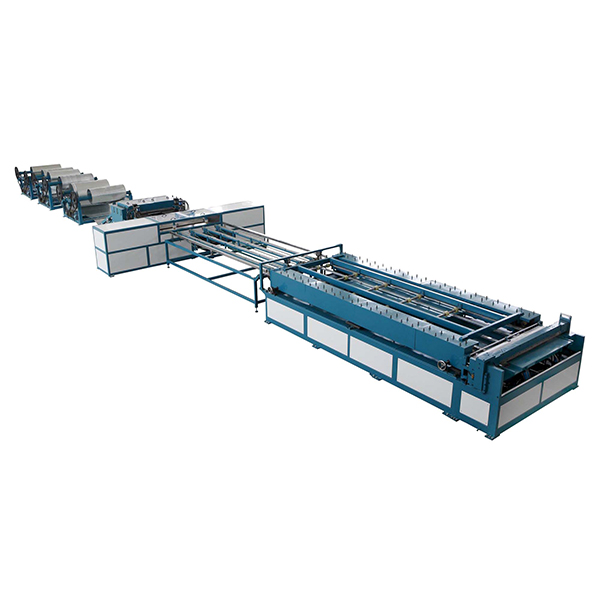

Duct Auto Line Ⅵ

Duct Auto Line VI can be put in a 20GP container with the feature of small size, firm structure and easy for installation, it can be used in the construction site to fulfill the ideal of movable operation and processing.

Detail

Duct Auto Line Ⅵ

Duct Auto Line V

Work Flow: decoiler-staightening-beading-notching-punching –cutting-pittsburgh lock forming-coil conveyor-duplex TDF flange forming-duplex C cleat roll forming- hydraulic folding

Detail

Duct Auto Line V

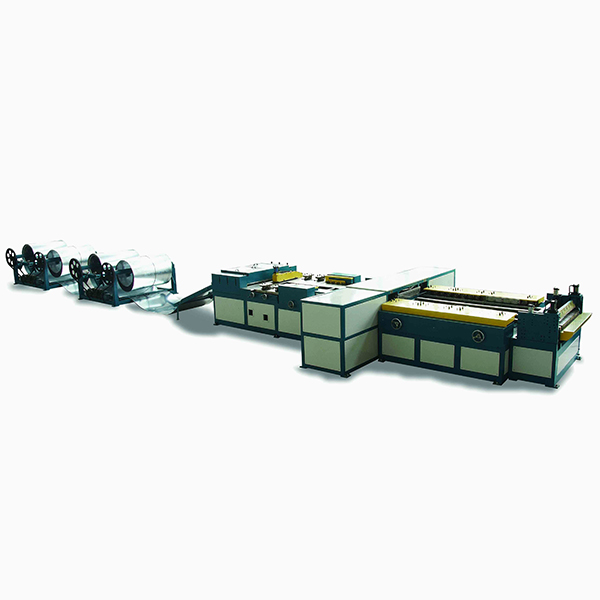

Duct Auto Line VIII

Stations: coil-straightening-beading-punching cross-tie holes-punching square-notching-duplex drive cleat forming-folding -shearing- automation pittsburgh lock forming-coil conveyer (optional) -duplex TDF flange forming -hydraulic folding

Detail

Duct Auto Line VIII

Duct Auto Line VII

Stations: coil-straightening-beading-punching square-notching-folding -shearing-automotion pittsburgh lock forming-coil conveyer (optional)-duplex GDF flange forming -hydraulic folding and seaming

Detail

Duct Auto Line VII

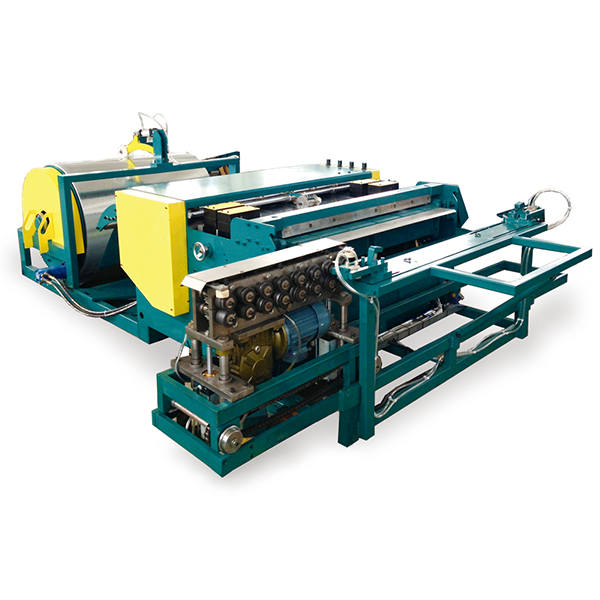

Duct Manufacture Super Line III

Stations: coil - straightening - beading - punching square - notching - folding - shearing - pittsburgh lock forming

Detail

Duct Manufacture Super Line III

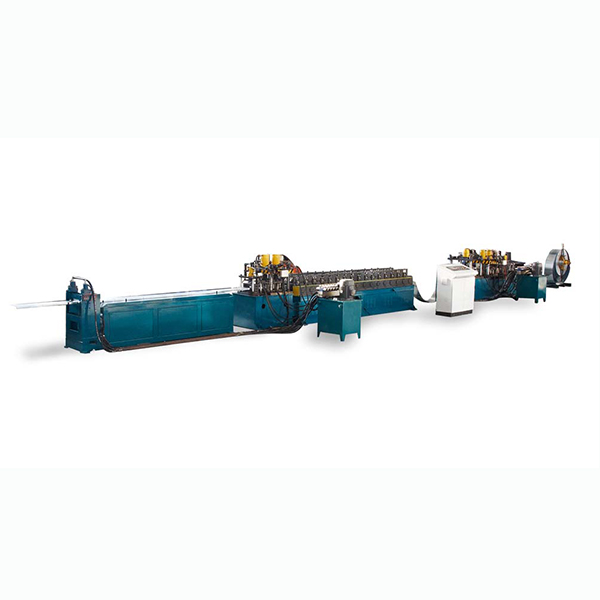

Damper Frame Auto Line

The Fire damper frame manufacture auto line can fabricate two kinds of frames, newly designed hand fold integrated frame and TDF corner fastened frame.

Detail

Damper Frame Auto Line

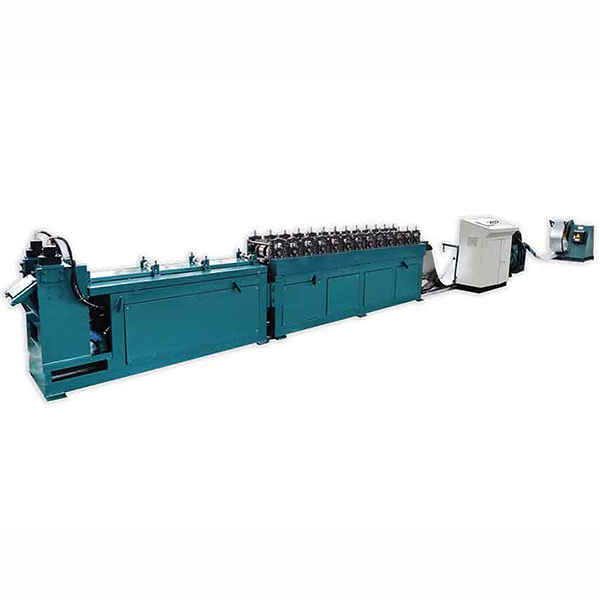

Smoke Exhaust Outlet Auto Line

Smoke exhaust outlet also called positive pressure air supply outlet . The frame auto line consists with decoiler, straightening , punching , roll forming and folding . Patented design which Comifo has its copyright.

Detail

Smoke Exhaust Outlet Auto Line

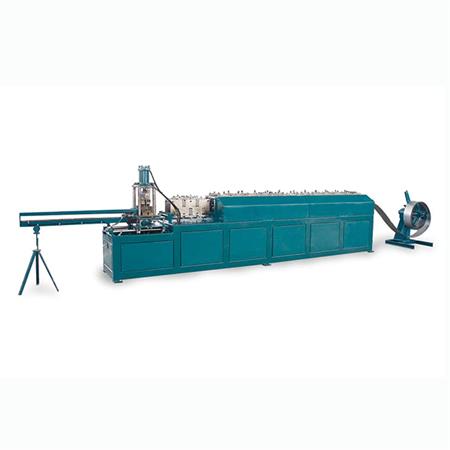

Damper Blade Auto Line

Damper blade auto line makes manufacture for damper blade easier! Combine with a decoiler, cutting and punching unit, an auto line can be provided for three different sizes of blades with different coil width.

Detail

Damper Blade Auto Line

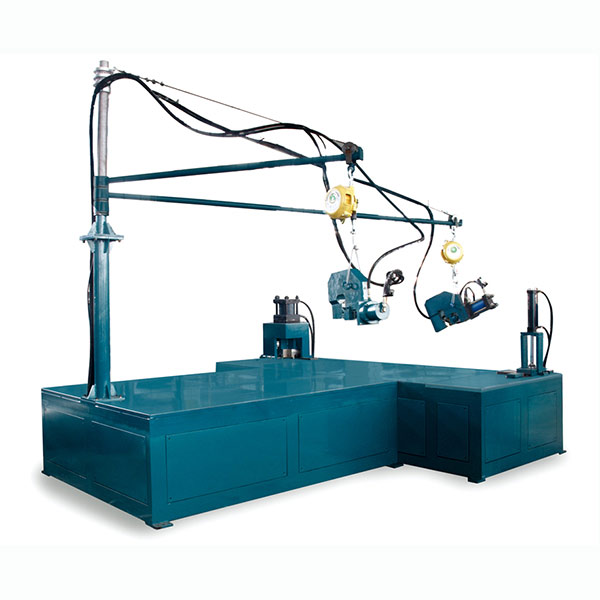

Fire Damper Fasten Table

Comifo is the first one and also the unique one who makes this fastening platform. It consists of fire damper corner fastening, seam closing fastening, hanging double fastening and hanging single fastening.

Detail

Fire Damper Fasten Table

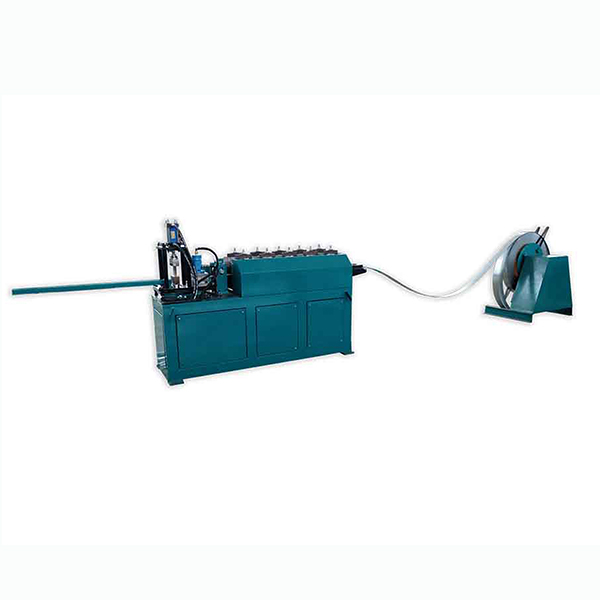

Support Bar Auto Line

The auto line manufactures the support bar for the dampers automatically with decoiler, roll forming , punching and cutting.

Detail

Support Bar Auto Line

Plasma Cutting Machine COMPA3100

Used in manufacture applications to cut sheet metal up to 1500*3100mm and 6mm thick for Galvanized Steel, the Compa 3100 meets the requirement for not only efficient and productive, but also highly cost-effective.

Detail

Plasma Cutting Machine COMPA3100

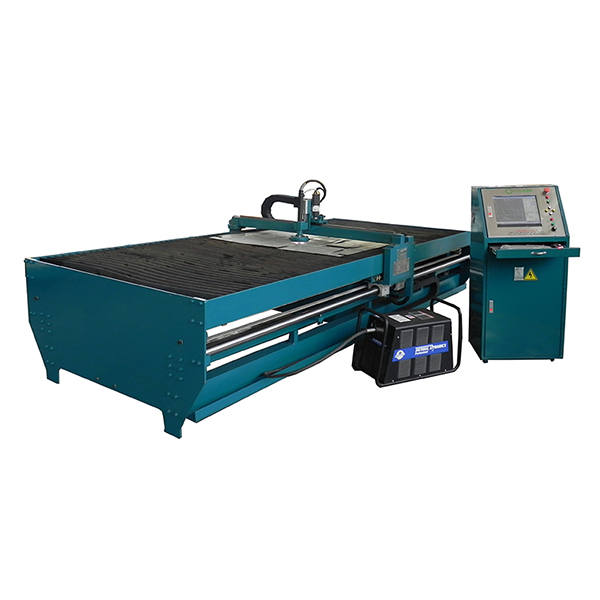

Plasma Cutting Machine COMPA5100

It enjoys the advantages with Compa 3100, and provides the working platform for 1500*5100mm and maximum 6mm thick depend on different materials.

Detail

Plasma Cutting Machine COMPA5100

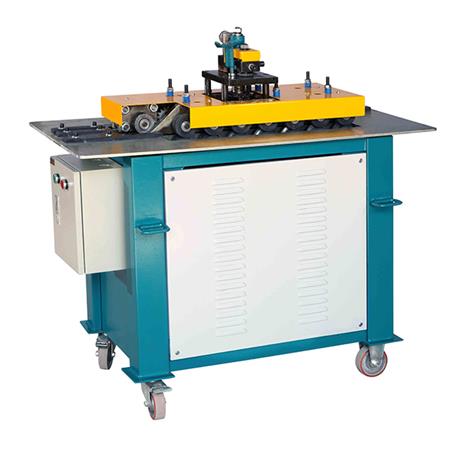

RF-12DR Lock Former

This 8/9-station lock former offers 6 forming positions, pittsburgh and auxiliary double seam(ACME),right angle flange, drive cleat (size of 25mm) with slitter, as well as top mounted power flanger.

Detail

RF-12DR Lock Former

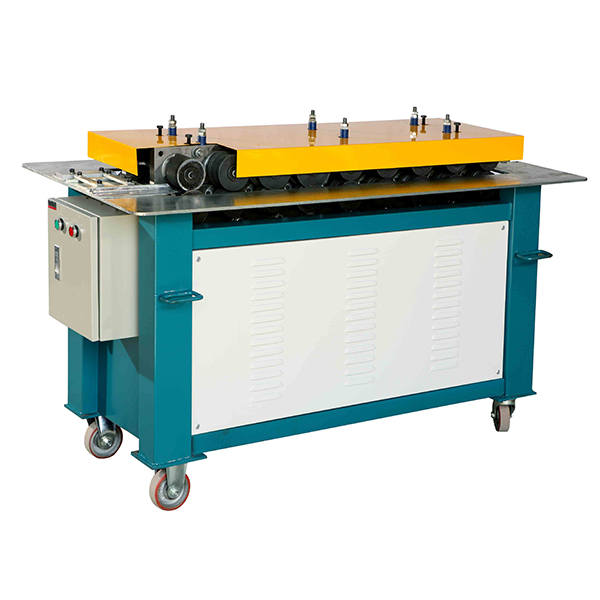

RF-12M Lock Former

RF-12M is featured of flat “S” cleat rollers. It has pittsburgh, double seam (ACME), as well as drive cleat (size of 28mm).

Detail

RF-12M Lock Former

RF-12S Button Snap Lock Former

The Button Lock roll former comes with "male" tooling on one side and "female" on the opposing side. A fast, effective way. Rollforms Male & Female Button Lock in one machine,with the thickness range from 0.8mm to 1.2mm.

Detail

RF-12S Button Snap Lock Former

RF-08B Snap Lock Former

9-station machine which fabricate both male and female forms for reeves-type snap lock. Each lock is formed on flat sheets with no restriction on the diameter of the finished pipe. This type of lock is more air-tight with better seam.

Detail

RF-08B Snap Lock Former

RF-08S Button Snap Lock Former

The Button Lock roll former comes with "male" tooling on one side and "female" on the opposing side. A fast, effective way. Rollforms Male & Female Button Lock in one machine,with the thickness range from 0.4mm to 0.8mm.

Detail

RF-08S Button Snap Lock Former

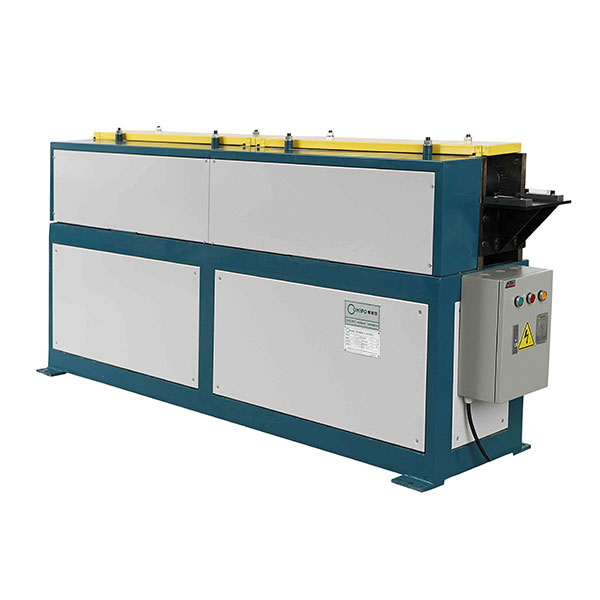

RF-08D Standing S Cleat

It forms a shape that combines a conventional “S” cleat with a standing seam for greater strength and rigidity with thickness of 22ga.

Detail

RF-08D Standing S Cleat

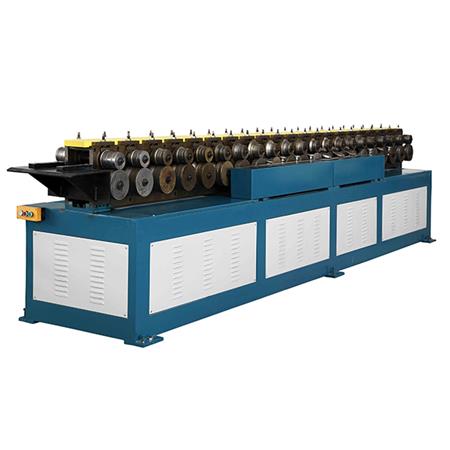

GDF Flange Forming Machine

It shares common advantages with TDF flange well seal, free of jointing and rivet. GDF flange is integral with duct, with 4 bolts and special duct corner and clamp.

Detail

GDF Flange Forming Machine

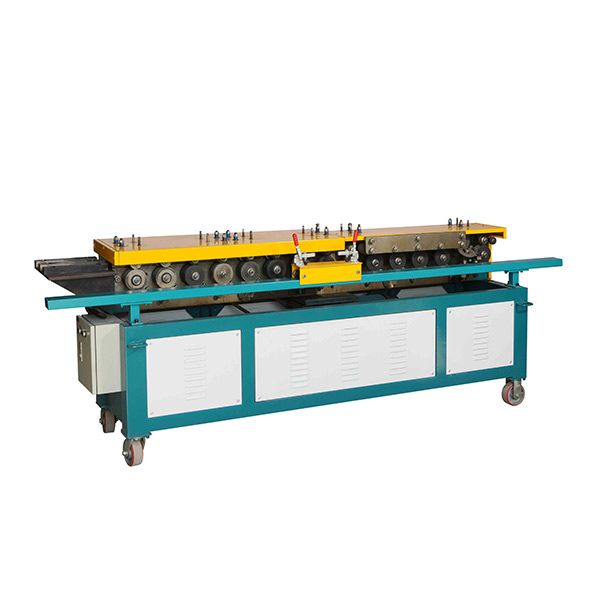

TDF Flange Forming Machine

The machine makes one side TDF flange and the forms Clip. 16 forming stations produce an intefral flange while another 9 forming stations produce clip. With compact design, this machine can be taken to construction site easily.

Detail

TDF Flange Forming Machine

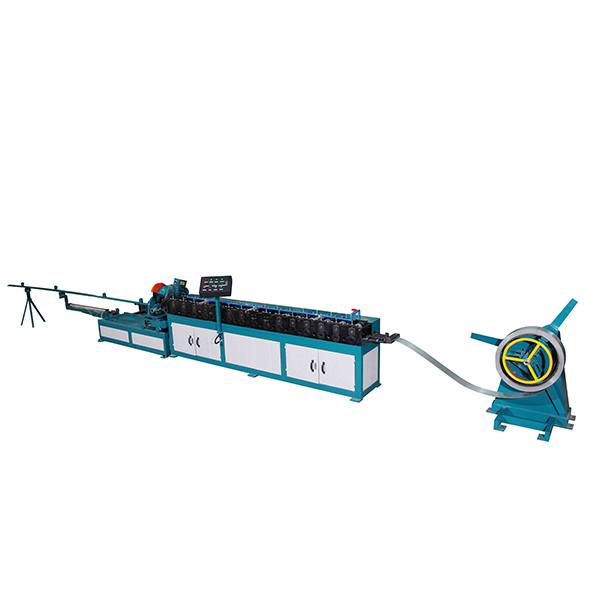

TTF/LT Mate Flange Forming Machine

TTF/LT mate flange has well seal,strong and durable joint structure. Therefore it is specially suitable for producing a duct with large sectional area.

Detail

TTF/LT Mate Flange Forming Machine

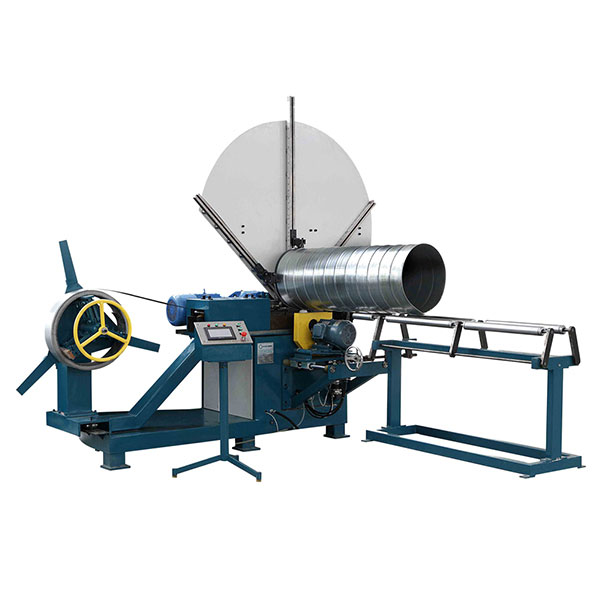

FHNR-1400 Spiral Tube Forming

Spiral tube forming machine processes round duct of maximum diameter up to 1400mm. With strong seal, flexible, It can be adjusted to make ducts with different diameters by changing different forming strips.

Detail

FHNR-1400 Spiral Tube Forming

FHR-1600 Spiral Tube Forming Machine

It processes round duct of maximum diameter up to 1600mm. it is easy to change the diameter for different duct size by changing different forming heads. Hydraulic roll cutting provides no burrs, sparks or noises.

Detail

FHR-1600 Spiral Tube Forming Machine

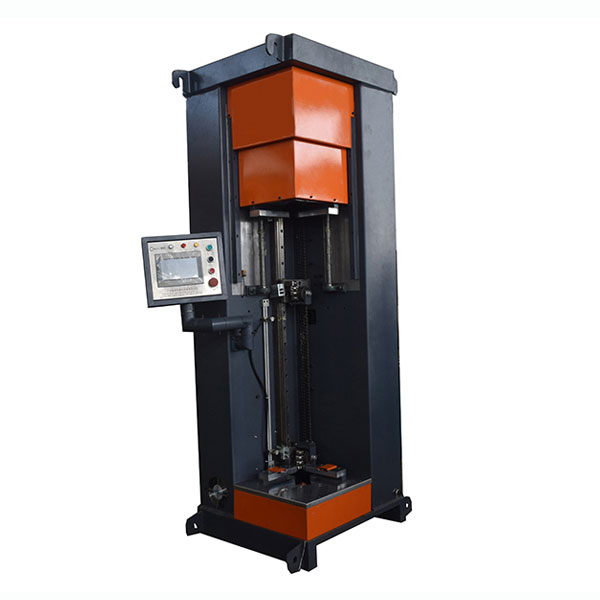

Vertical duct seam closing machine

The latest design in seaming technology is now available. At the Pittsburgh joint, the individual seams are called Pittsburgh seam(pittsburgh lock) and standing seam(right angle flange).

Detail

Vertical duct seam closing machine

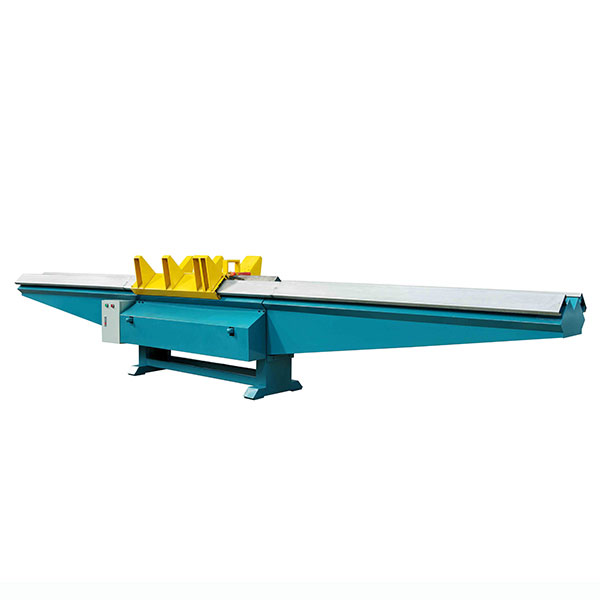

Duct Zipper

This machine is suitable for mate flange duct and C cleat joint duct manufacture. Combined with Comifo duct manufacture compact line III, hand cleat folder,production efficiency can be greatly improved.

Detail

Duct Zipper

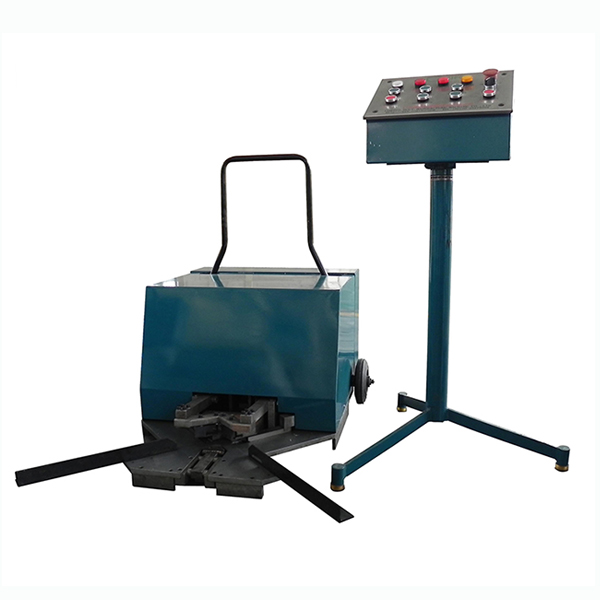

Corner Inserter

It saves installation labor , decreases leakage and eliminates twists. Regarding both end corner inserter , the max height adjustable up to 1600mm section.

Detail

Corner Inserter

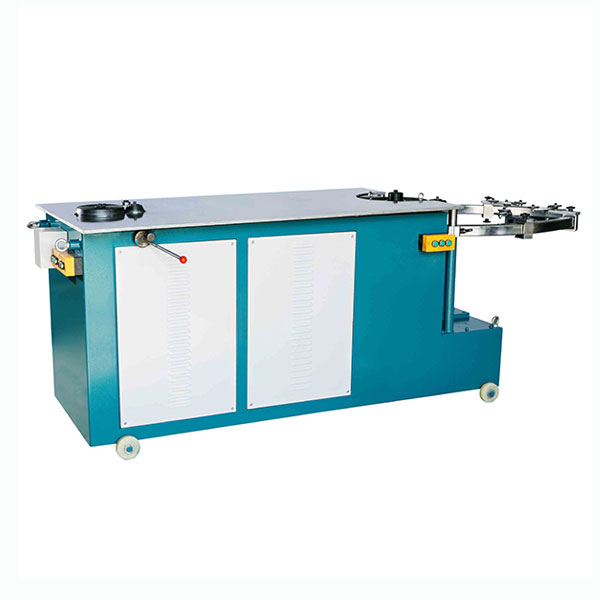

Hydraulic Elbow Maker

COMIFO Elbow Maker is the special equipment for both connecting lock and seaming when processing on metal plate round pipe and round elbow.

Detail

Hydraulic Elbow Maker

Video


Duct Manufacture Auto Line Pro

Duct Auto Line VI

Duct Auto Line V

Fire Damper Frame Auto Line

Damper Blade Auto Line

Fire Damper Fastening Table

Plasma Cutting Machine

RF-12DR Lock Former

RF-12M Lock Former

TDF Flange Forming Machine

GDF Flange Forming Machine

TTF/LT Mate Flange Forming Machine

Spiral Tube Forming Machine FHNR-1400

Spiral Tube Forming Machine FHR-1600

Vertical Duct Seam Closing Machine

Advantage

Professional HVAC Duct Fabrication Equipment Manufacturer

WITH 20 YEARS OF MACHINERY MANUFACTURE EXPERIENCE

WITH 20 YEARS OF MACHINERY MANUFACTURE EXPERIENCE

HAS BEEN SELLING TO MORE THAN 128 COUNTRIES AND AREAS

HAS BEEN SELLING TO MORE THAN 128 COUNTRIES AND AREAS

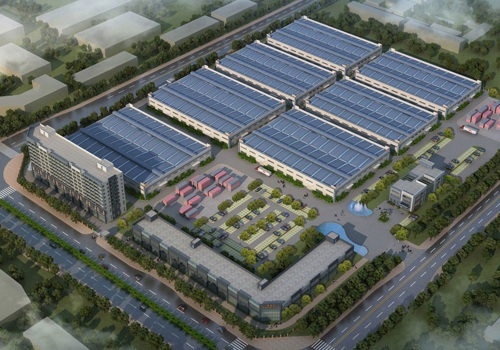

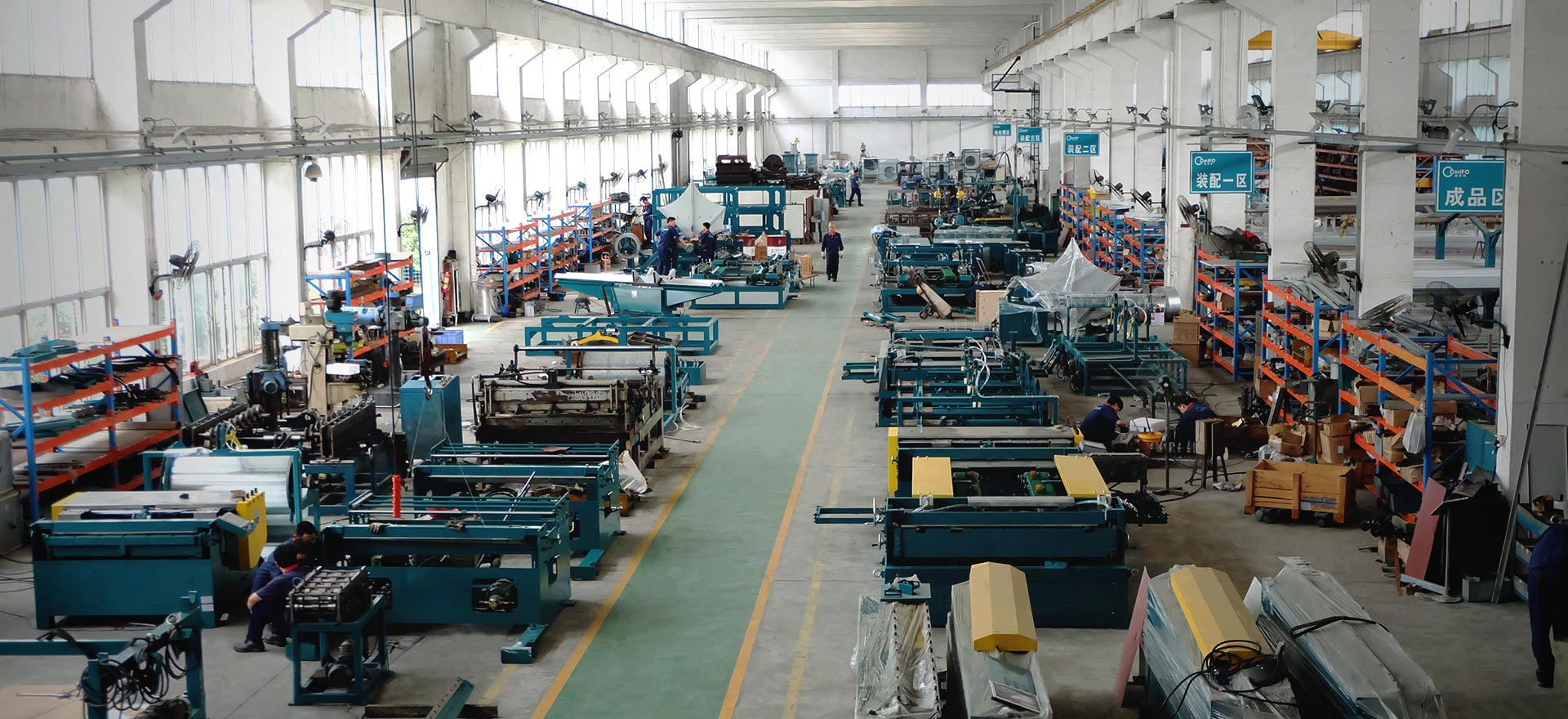

WITH 140,000㎡ FACTORY PRODUCTION AREA

WITH 140,000㎡ FACTORY PRODUCTION AREA

WITH 24 PRODUCT PATENTS

WITH 24 PRODUCT PATENTS

About Us

Expert Of Duct Manufacture Machinery In HVAC


  • About Company
  • About Company
  • About Company
About Company
About Company
About Company
Comifo Group specializes in air duct machine manufacturing, contracting and selling HVAC air conditioning equipments, HVAC machinery, valve and actuators,air duct machine,air duct manufacturing.Comifo Duct Manufacture Machine Co., Ltd is one of Comifo group member, the leading company which specializes in machine manufacture, involving in Heating, Ventilation and Air Conditioning (HVAC) fabrication, cable tray fabrication, coil processing, roll forming, etc.With its advanced technology, Comifo grows to be a company of designing, manufacturing and selling air duct machine,air duct manufacturing machines to customers all over the world, from whom we obtain reputation and pr...
