  • Model number : Support Bar Auto Line

Support Bar Auto Line

  • Model No.:FDGA-2.0
  • Thickness Range:1.5-2.0mm
  • Speed:8m/min
  • Roll Material Maximum Load Bearing:1.5ton
  • Dimension:7000*1200*1300
  • Weight:4000kg
  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: GUANGZHOU PORT,SHENZHEN PORT
  • Payment Terms: T/T,L/C

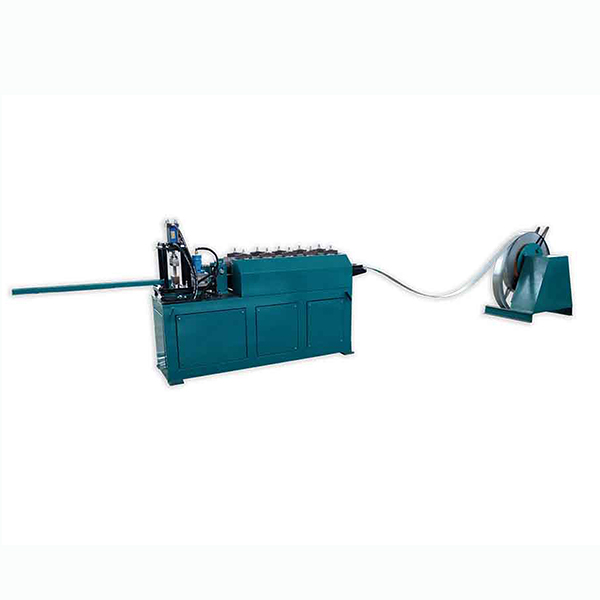

The auto line manufactures the support bar for the dampers automatically with decoiler, roll forming , punching and cutting.

1. A decoiler
2. A roll forming machine

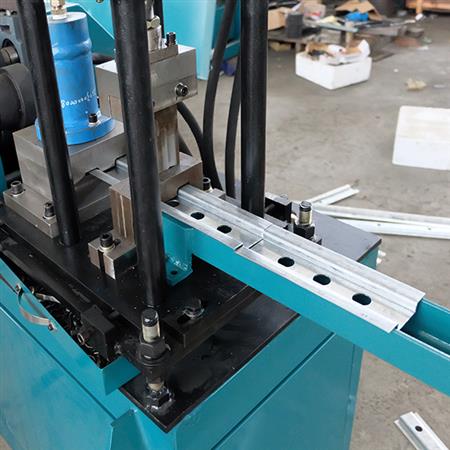

3. A punching and cutting mould
4. A control system

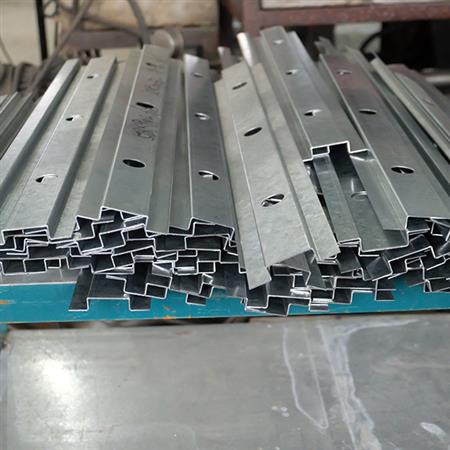

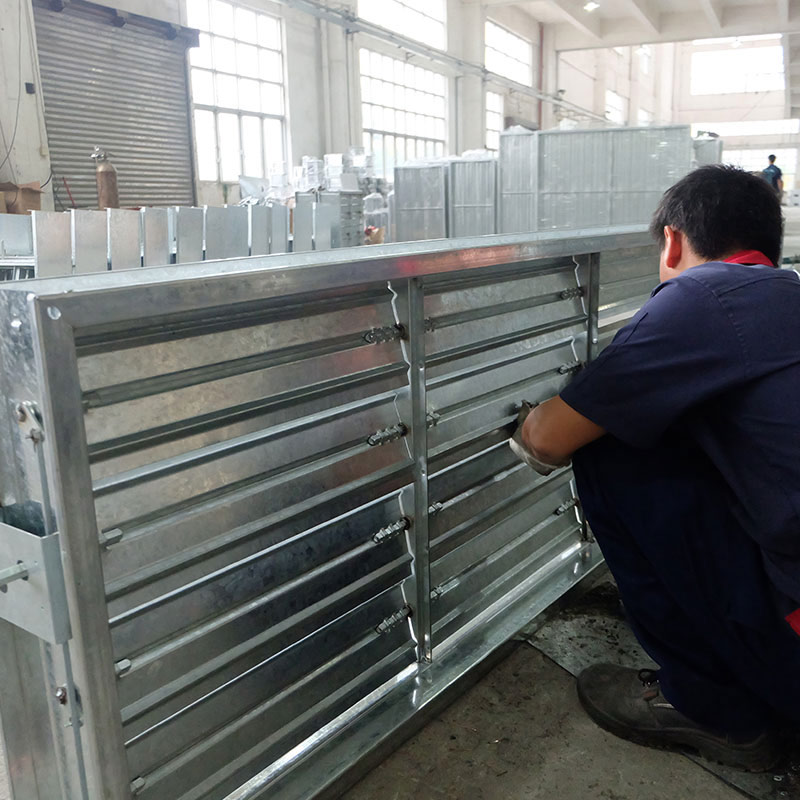

A support bar will be used for big fire damper/ VCD (Volume Control Damper) to separate the damper to several sections.
