  • Model number : Duct Manufacture Super Line III

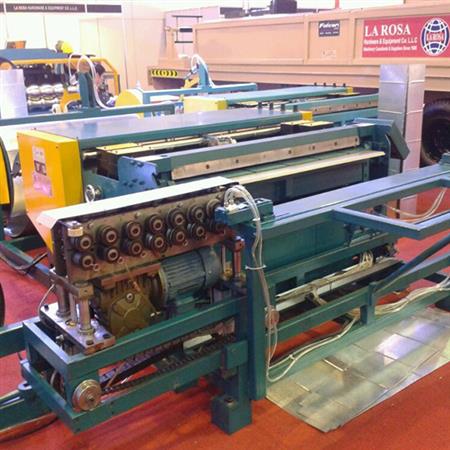

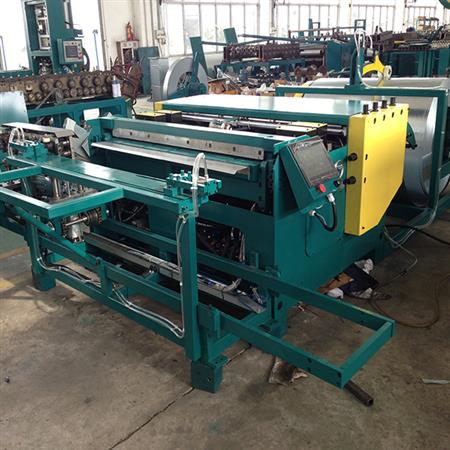

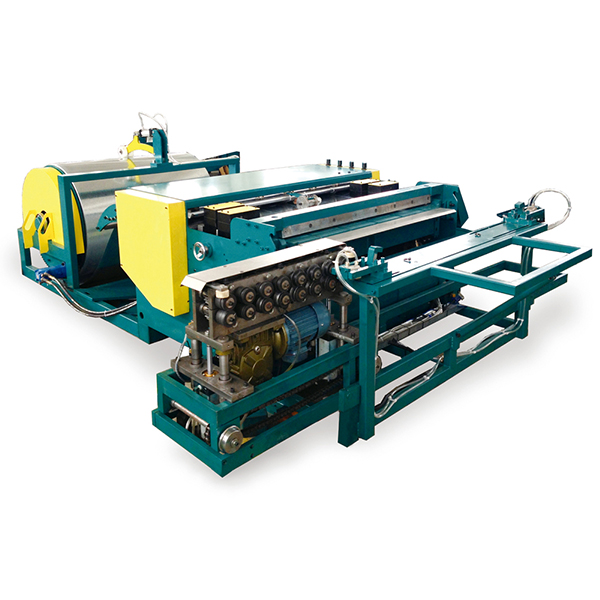

Duct Manufacture Super Line III

  • Model No.:CSL3-1.2x1300,CSL3-1.2x1600
  • Max Coil Width:1300mm,1600mm
  • Thickness Range:0.4-1.2mm(18-30ga)
  • Speed:0-18m/min(0-59FPM)
  • Shearing Tolerance:±0.5mm
  • Diagonal Tolerance:±0.5mm
  • Floor Space:4000*2300*1400mm,4000*2600*1400mm
  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: GUANGZHOU PORT,SHENZHEN PORT
  • Payment Terms: T/T,L/C

Super line III consists of cradle style decoiler , straightening , beading , punching , notching ,folding , hydraulic shearing and pittsburgh lock forming type 1 ( forms pittsburgh lock ) . It processes maximum coil with 1300mm or 1600mm galvanized steel for 18 to 30 gague material into blank for TDF integrated flange duct , TTF /LT mate flange duct or angle iron flange duct .



Model No. Max Coil Width Thickness Range Speed Shearing Tolerance Diagonal Tolerance Floor Space
CSL3-1.2x1300 1300mm 0.4-1.2mm(18-30ga) 0-18m/min(0-59FPM) ±0.5mm ±0.5mm 4000*2300*1400mm
CSL3-1.2x1600 1600mm 0.4-1.2mm(18-30ga) 0-18m/min(0-59FPM) ±0.5mm ±0.5mm 4000*2600*1400mm



1.Motor driven decoiling , selectable coils stand by , maximum capacity of 5-ton per station ( optional : up to 10-ton per station )
2.Bends right angle lock
3.Pittsburgh lock former , forms pittsburgh lock
4.Optimizes floor space by inline position of machines , guarantees high efficiency
5.Accurate PLC control unit , preset available profiles and folding style , notching size , punching size , cutting dimension on touchscreen

Stations:
coil - straightening - beading - punching square - notching - folding - shearing - pittsburgh lock forming



Work Flow:

line-4-work-flow_1
