  • Model number : Duct Auto Line V

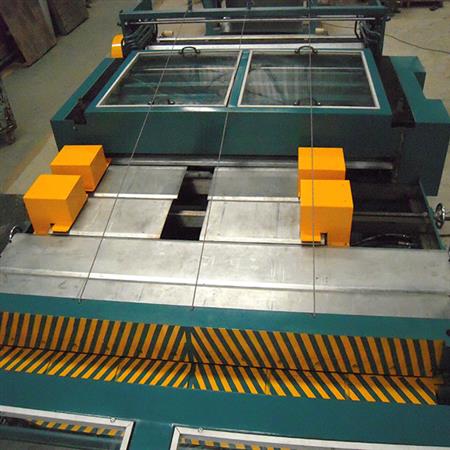

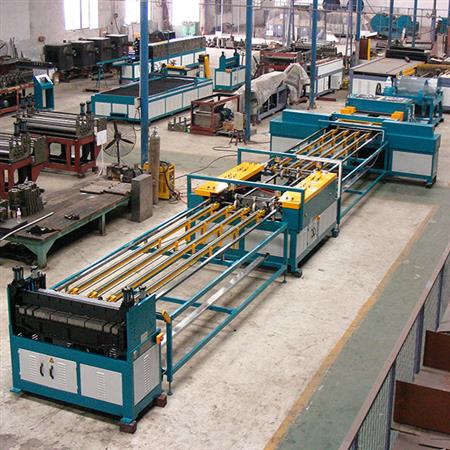

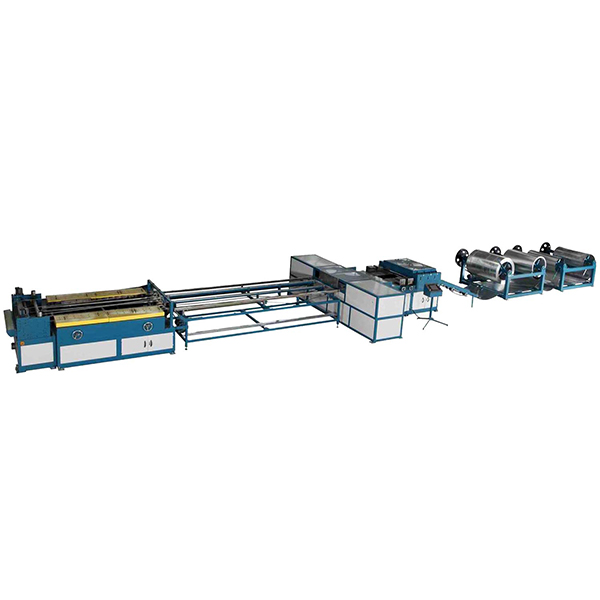

Duct Auto Line V

  • Model No.:CAL5-1.2x1300,CAL5-1.2x1250
  • Max Coil Width:4'(1250mm),5'(1550mm)
  • Thickness Range:0.5-1.2mm
  • Speed:0-18m/min
  • Shearing Tolerance:±0.5mm
  • Diagonal Tolerance:±0.5mm
  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: GUANGZHOU PORT,SHENZHEN PORT
  • Payment Terms: T/T,L/C

This auto line consists of decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automotion Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), coil conveyor, duplex TDF flange forming, duplex right angle lock forming (for angle iron), and TDF folding. It can process different ducting of “L”, and “口”. Used with the Comifo vertical duct seaming machine and corner inserter, increases production efficiency and saves labor cost.

Model No. Max Coil Width Thickness Range Speed Shearing Tolerance Diagonal Tolerance
CAL5-1.2x1300 4'(1250mm) 0.5-1.2mm 0-18m/min ±0.5mm ±0.5mm
CAL5-1.2x1250 5'(1550mm) 0.5-1.2mm 0-18m/min ±0.5mm ±0.5mm




1.Electric duplex decoiler:(capacity: 5ton per each) 2set

2.Straightening
no of straightening roller:6rollers for straightening
diameter of rollers:φ100
material of rollers:45#thermal refined,chrome plated

3.Beading :1set
no of beading roller: 2 rollers
diameter of rollers:φ100
material of rollers:45#thermal refined,chrome plated
beading shapes

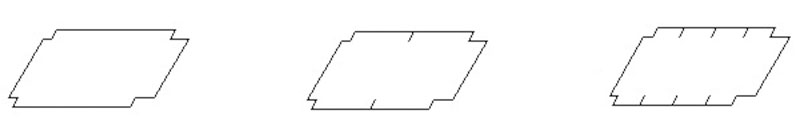

4.Notching and punching

Configuration-2

5.Hydraulic shearing : shearing tolerance:±0.5mm
material of the shearer:6crwu2si
hardness of the shearer:58-62hrc

6.Automotion pittsburgh lock former(patened):
a pittsburgh lock former can form pittsburgh lock and right angle and shear at the same time,it is a perfect match for duct manufacture auto line, comifo design this machine and step a big progress in duct work industry, and comifo had successfully gained the patent right legally.


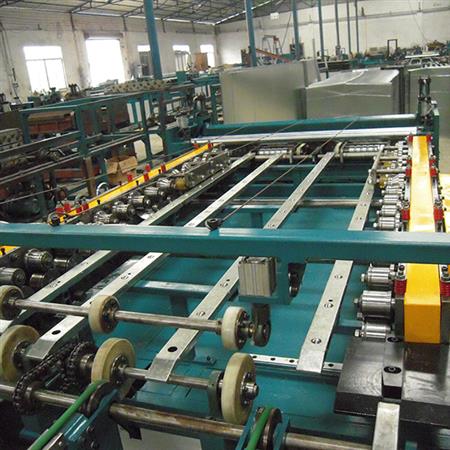

7.Coil conveyor

8.Duplex flange former

Configuration-4

9.hydraulic folder

Configuration-5

10.touch screen: input the dimension and make the command, easy-to-operation

1.Cut to length or cut blank for plasma cutting machine
2.1 Produce a full wrap duct with TDF flange and Pittsburgh lock
2.1 Produce a full wrap duct with C cleat (drive cleat) or C/S duct
3. All products can be made as “L” shape or “口” (full wrap duct)
4. Finished product can be used with whisper-loc seam closer for seaming

Work Flow: decoiler-staightening-beading-notching-punching –cutting-pittsburgh lock forming-coil conveyor-duplex TDF flange forming-duplex C cleat roll forming- hydraulic folding
