Duct Compact Line II

Duct Compact Line II Products Information

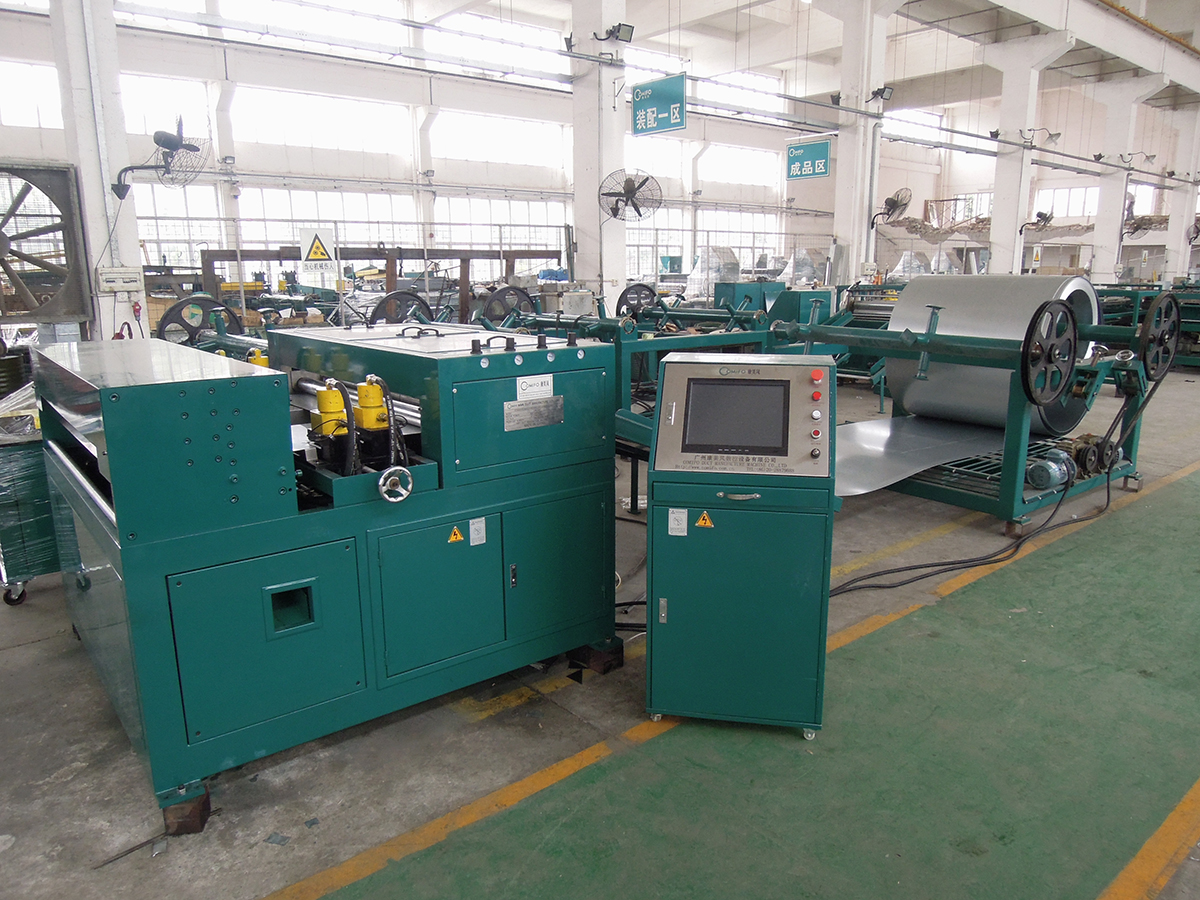

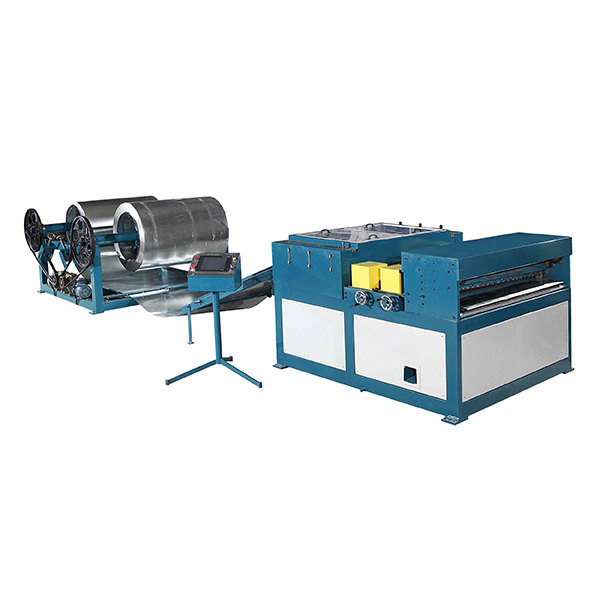

Developed from Compact Line I, Compact Line II is with hydraulic punching square and notching. Comifo’s Compact Line II consists of cradle style decoiler, 6-roller straightener, beading, punching, notching and hydraulic shearing,. It processes 4’ (1250mm) or 5’ (1550mm) galvanized steel for 18 to 27 gauge (0.5-1.2mm) galvanized steel for 18 to 27 gauge (0.5-1.2mm) material into blank next production or for plasma cutting machine. Comifo is a professional ductwork equipment manufacturer with rich experience in auto duct line production, please feel free to inquiry.

Model No.	Max Coil Width	Thickness Range	Speed	Shearing Tolerance	Diagonal Tolerance
CAL2-1.2x1300	4'(1250mm)	0.5-1.2mm	0-18m/min	±0.5mm	±0.5mm
CAL2-1.2x1600	5'(1550mm)	0.5-1.2mm	0-18m/min	±0.5mm	±0.5mm

Duct Compact Line II Configuration

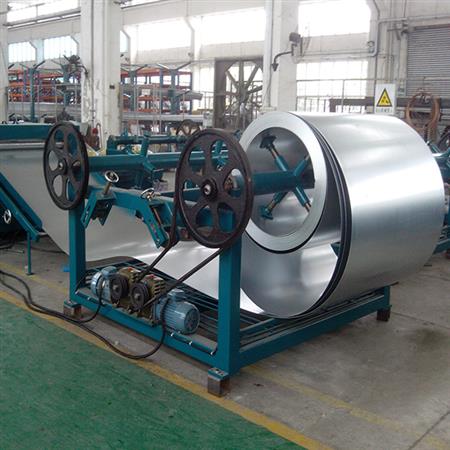

1. Electric duplex decoiler:（capacity: 7ton per each）1set motor：1.5kw
2. Straightening
no of straightening roller: 6 rollers
diameter of rollers: φ100
material of rollers: 45＃thermal refined,chrome plated
3. Optional beading: 1set
no of beading roller: 2 rollers
diameter of rollers: φ100
material of rollers: 45＃thermal refined, chrome plated
beading shapes



4. Notching and punching

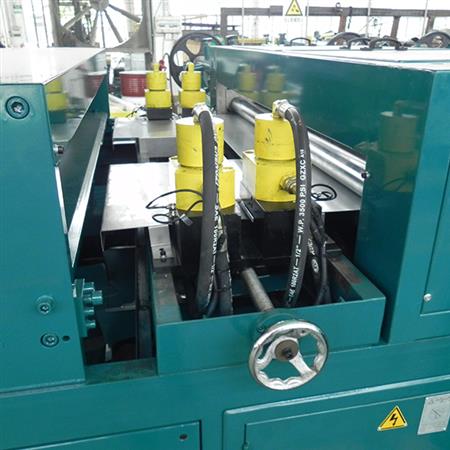

5. Hydraulic shearing: shearing tolerance: ±0.5mm
material of the shearer: 6crwu2si
hardness of the shearer: 58-62hrc

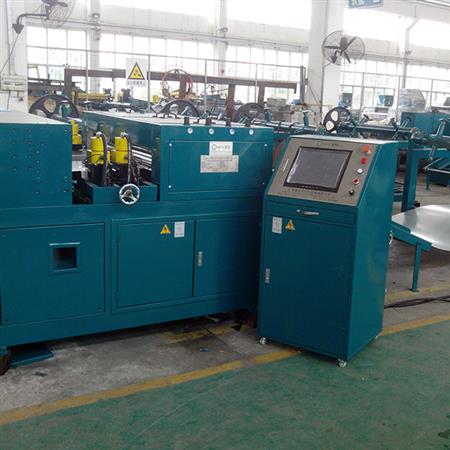

6. Touch screen: input the dimension and make the command, easy-to-operation

Duct Compact Line II Capabilities

1. Cut to length or cut blank for plasma cutting machine
2.1 Punching and notching for “C” “S” cleat duct. It can cut different types of notches such as ”L”, “U” and “口". It can also cut blank for “C” and “S” cleat flange machine.
2.2 Cutting blank for TDF flange machine. It can be used with TDF flange machine and folding machine.
3.3 Cutting blank for angle iron flange or “Z” shape flange machine.
4. Cutting blank for TTF/LT mate flange.

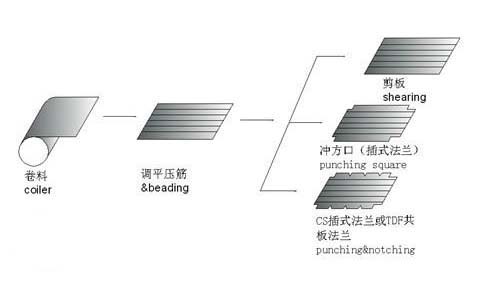

Work Flow: decoiler-staightening-beading-notching-punching-cutting

Duct Compact Line II Video
