  • Model number : Duct Compact Line III

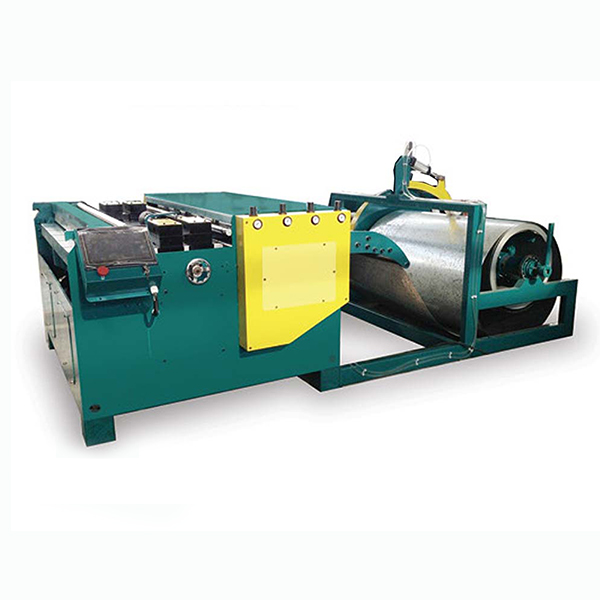

Duct Compact Line III

  • Model No.:CAL3-1.2x1300,CAL3-1.2x1550
  • Max Coil Width:4'(1250mm),5'(1550mm)
  • Thickness Range:0.5-1.2mm
  • Speed:0-18m/min
  • Shearing Tolerance:±0.5mm
  • Diagonal Tolerance:±0.5mm
  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: GUANGZHOU PORT,SHENZHEN PORT
  • Payment Terms: T/T,L/C

This auto line consists of decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automotion Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), coil conveyor, duplex TDF flange forming, duplex right angle lock forming (for angle iron), and TDF folding. It can process different ducting of “L”, and “口 ”. Used with the Comifo vertical duct seaming machine and corner inserter, increases production efficiency and saves labor cost.

Model No. Max Coil Width Thickness Range Speed Shearing Tolerance Diagonal Tolerance
CAL3-1.2x1300 4'(1250mm) 0.5-1.2mm 0-18m/min ±0.5mm ±0.5mm
CAL3-1.2x1550 5'(1550mm) 0.5-1.2mm 0-18m/min ±0.5mm ±0.5mm




1.Electric duplex decoiler:(capacity: 7ton per each) 1set motor:1.5kw

2.Straightening
no of straightening roller: 6 rollers
diameter of rollers:φ100
material of rollers:45#thermal refined,chrome plated

3.Beading :1set
no of beading roller: 2 rollers
diameter of rollers:φ100
material of rollers:45#thermal refined,chrome plated
beading shapes

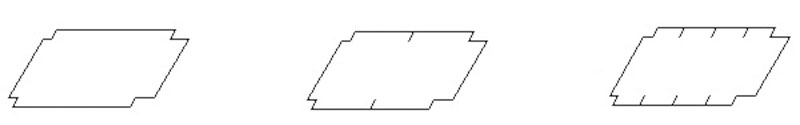

4.Notching and punching

Configuration-2

5.Hydraulic folding

Configuration-5

6.Hydraulic shearing : shearing tolerance: ±0.5mm
material of the shearer:6crwu2si
hardness of the shearer:58-62hrc

7.Touch screen: input the dimension and make the command, easy-to-operation/p>

1.Cut to length or cut blank for plasma cutting machine
2.1 Punching and notching for “C” “S” cleat duct. It can cut different types of notches such as ”L”, “U” and “口”. It can also cut blank for “C” and “S” cleat flange machine.
2.2 Cutting blank for TDF flange machine. It can be used with TDF flange machine and folding machine.
2.3Cutting blank for angle iron flange or “Z” shape flange machine.
4. Cutting blank and folding for TTF/LT mate flange.
4. Folding and Cutting for Duct Zipper machine

Work Flow:decoiler-staightening-beading-notching-punching-folding-cutting
